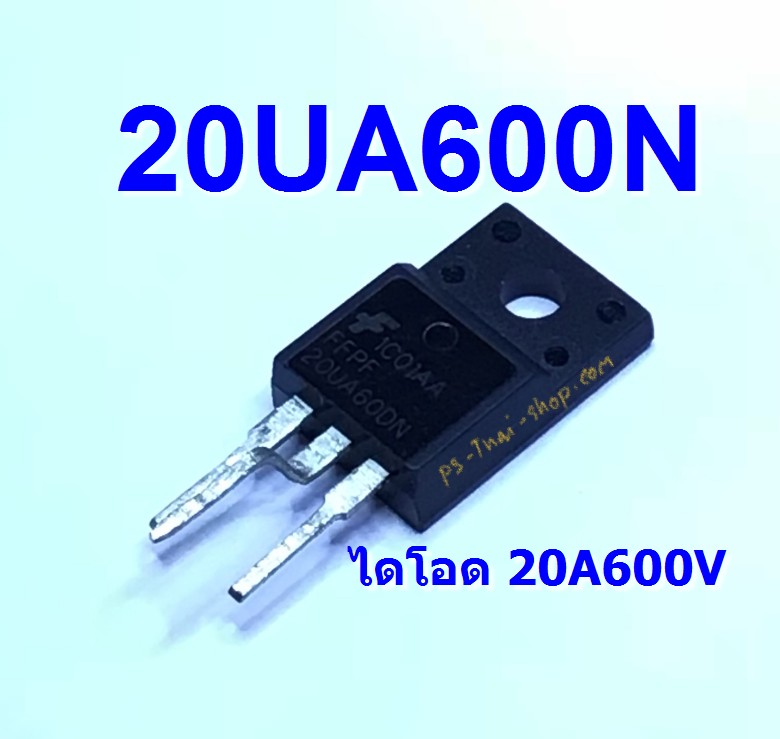

PF20UP60DN (20A, 600V )

The FFPF20UP60DN is a ultrafast rectifier with soft recovery characteristics. It is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as freewheeling of boost diode in switching power supplies and other power swithching applications. It’s low stored charge and ultrarfast soft recovery with soft recovery characteristics minimize ringing and electrical noise in many power switching, thus reducing power loss in the switching
transistors.

Features
• High Speed Switching, trr < 70ns @ IF = 10A
• High Reverse Voltage and High Reliability
• RoHS compliant

Applications
• General Purpose
• Switching Mode Power Supply
• Boost Diode in continuous mode power factor corrections
• Power switching circuits
